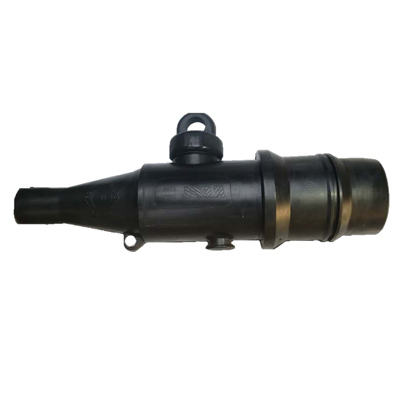

RPCT-24C = Asymmetrical Elbow Connector 1250A up to 42kV
Screened Asymmetrical Elbow Connector 1250A up to 42kV
Suitable for connecting all types of polymeric insulated cables to equipment with bushings Type C2 according to EN 50180 and EN 50181
For Voltage Range up to 20.8/36 (42) kV
Continuous current rating up to 1250A
Meets the requirements of IEC 60502-4 and CENELEC HD 629.1 S2
Compact design – asymmetrical body allows minimum depth of connection – especially when multiple connections are used
Suitable for Copper or Aluminium Conductors from 300-630mm2
Companion Branch Connector RPCBT-42A available for making multiple connections from same bushing
Standard Kit Contents:
Set of 3 separable connector bodies and insulating back plug
Set of 3 Silicon Stress Control Elements
Set of 3 screw type lug and connecting stud
Earthing connections and mastic sealants
Installation materials and instructions
