RPCT - 24C REPL

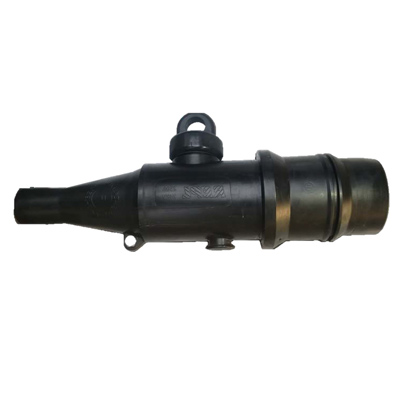

RPCT - 24C is a REPL screened, separable connection system 800 A up to 24 kV.

REPL RPCT - 24C screened separable connectors are designed to connect single- and three-core polymeric cables to medium-voltage gas insulated switchgear and other equipment using CENELEC bushings type “C” specified for 630/1250 A up to 24 kV.

Made of a highly modified silicone rubber and protected by a thin-walled outer conductive screen connected to earth, RPCT - 24C connectors are equally suited for indoor and outdoor installation.

Supporting a wide application range, the design incorporates one body and two stress cone adapters to cover all cross-sections from 25 to 300 mm2. The overall and cut-back dimensions are designed to take up minimum space in the terminal box.

RPCT - 24C REPL connectors are equipped with a capacitive test point for determining whether the circuit is energised. This test point is protected by a conductive cap. After cable preparation and lubrication, the stress control adapter is simply slid into place, followed by the screened connector body. These two components can be installed under virtually any conditions. A separable mounting system ensures easy installation of the connector onto the bushing. All kits include highperformance multi-range mechanical or DIN compression lugs matching the design of the RPCT - 24C REPL connector.
