REPL JOINTING COLD SHRINK

RCSJ = Cold Shrinkable Cable Straight Joint Kits for Polymeric Insulated Cables up to 36kV

Cold Shrinkable Cable Straight Joint Kits for Polymeric Insulated Cables up to 36kV

For Connecting Medium Voltage Cables up to 36kV

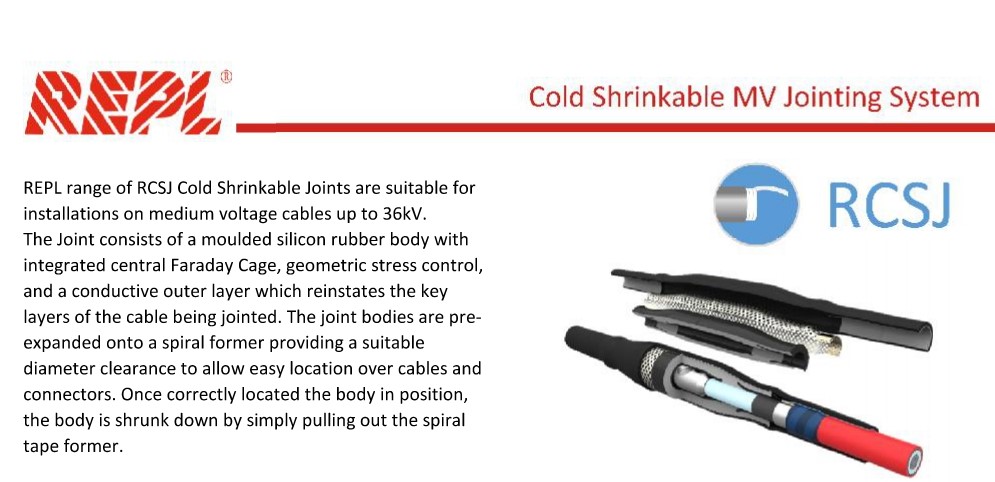

REPL range of Cold Shrinkable Joints are suitable for installations on medium voltage cables up to 36kV. The Joint consists of a moulded silicon rubber body with integrated central faraday cage and geometric stress control at both ends, and a semi-conductive outer layer. The joint bodies are pre-expanded onto a spiral former providing a suitable diameter to allow easy locating over cables and connectors. Once correctly located the body is collapsed by simply pulling out the spiral tape. When installed the joint provides a void free reinstatement of the cable.
