RLJ-(7-42)X REPL Heat Strinkable

RLJ-(7-42)X REPL Heat Strinkable

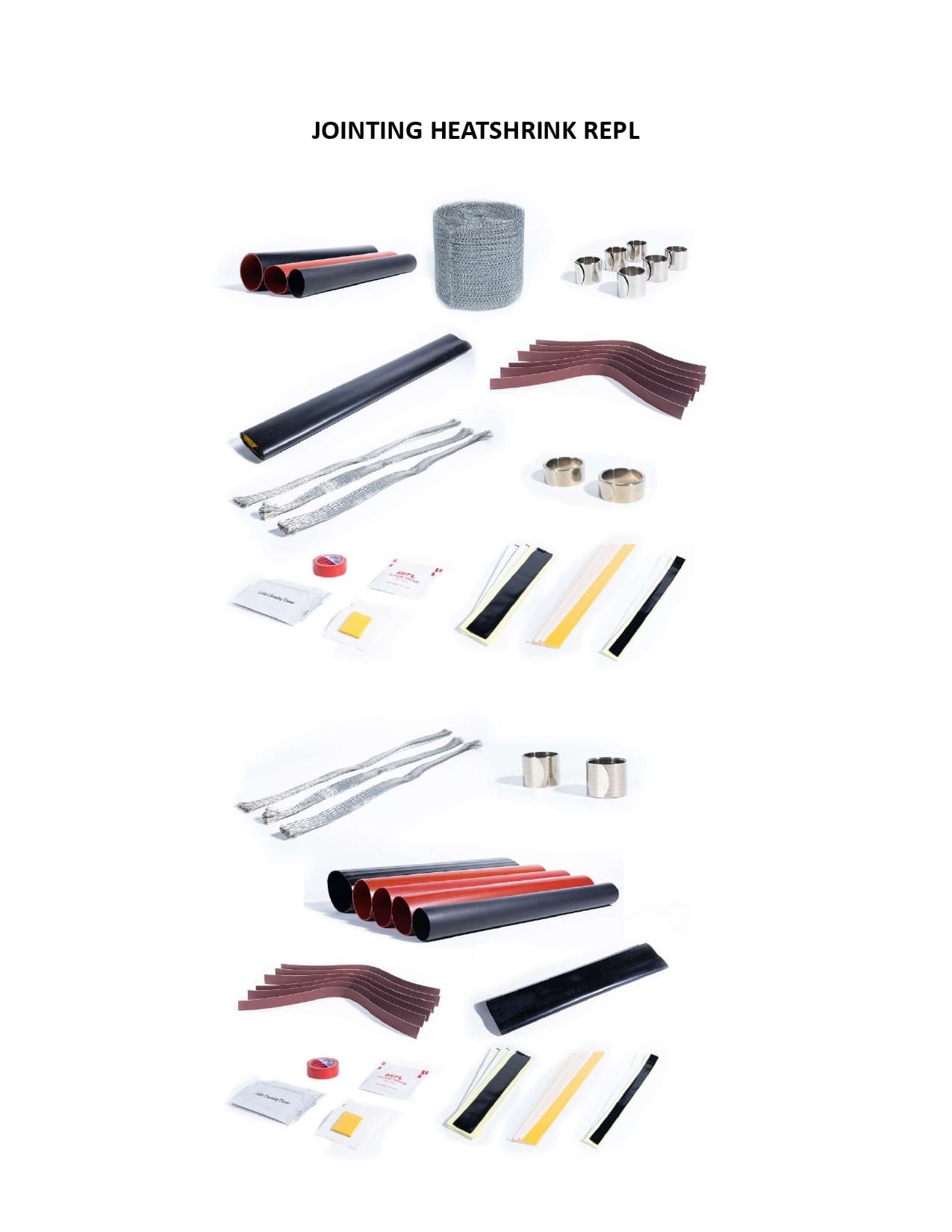

Typical Kit Contents

(actual components will depend on specific joint type)

• Heat Shrinkable insulation tubing1

■ Heat Shrinkable stress control tubing

• Stress control void filling mastic

■ Earth/ armour screen continuity materials

• Heavy Wall Heat Shrinkable corrosion protection tubing

■ Mastic sealing tapes

■ Phase conductor connector2

1 - Number and type of tubes depends on insulation level

2 - Optional, type specified at order RLJ- 7-42 X

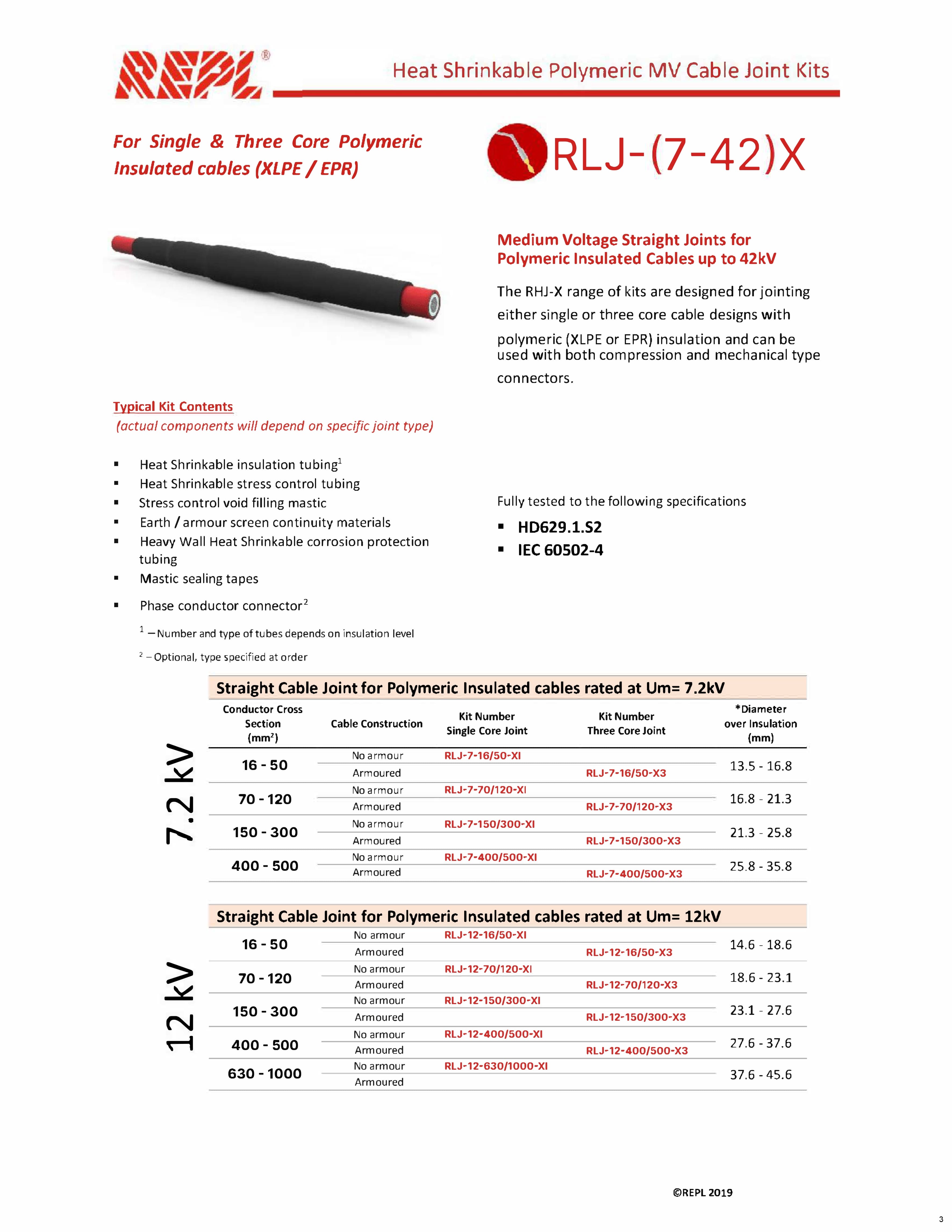

Medium Voltage Straight Joints for Polymeric Insulated Cables up to 42kV The RHJ-X range of kits are designed for jointing

either single or three core cable designs with polymeric (XLPE or EPR) insulation and can be

used with both compression and mechanical type connectors.

Fully tested to the following specifications

■ HD629.1.S2

■ IEC 60502-4
