RCST - (7-36) COLD STRINKABLE REPL

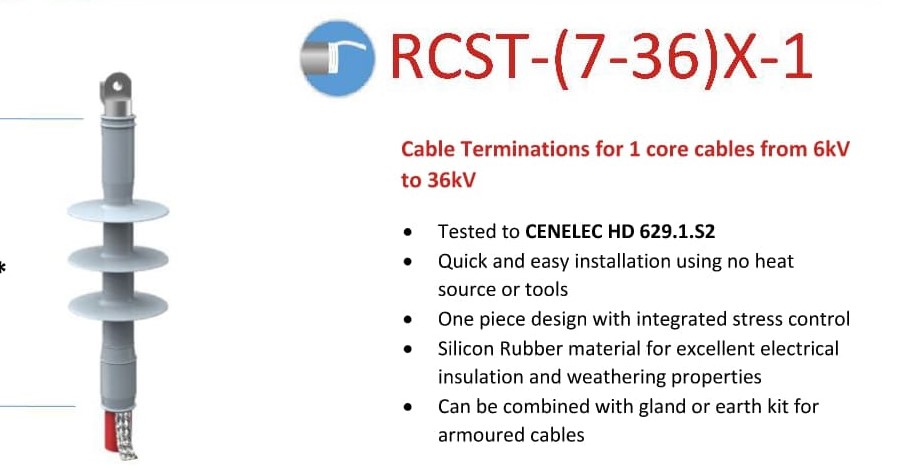

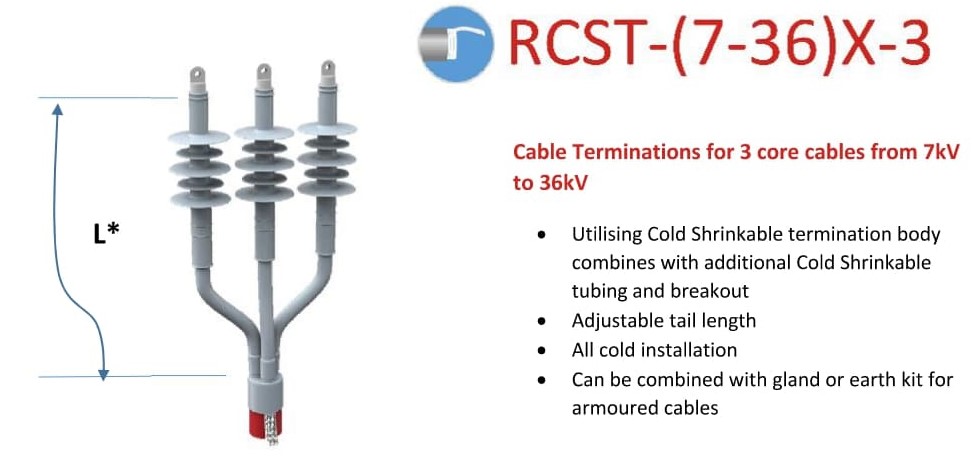

RCST is a tool free termination, elastomeric medium voltage terminations for 15kV, 25kV and 35kV single core polymeric cables.

RCST elastomeric medium voltage cable terminations are designed with a cold applied system.

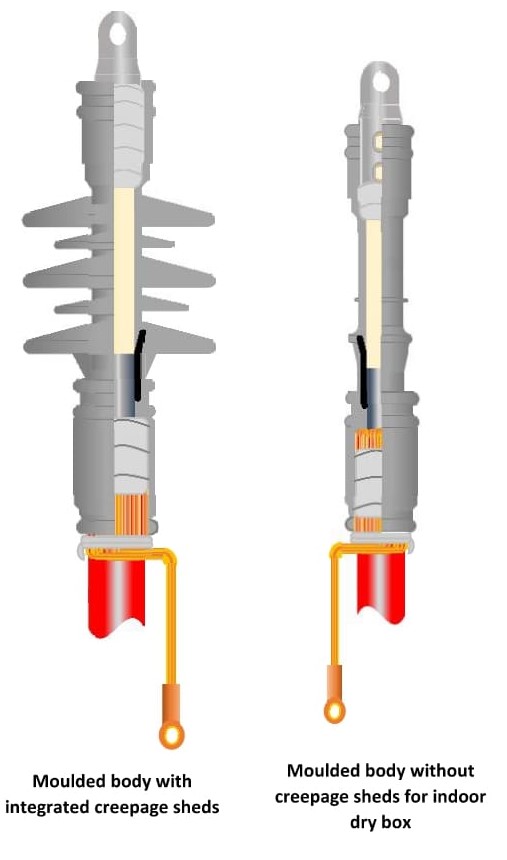

This termination features an advanced stress control system using metal oxide matrix technology providing superior electrical performance.

RCST system has an elastomeric housing with integral sheds that is formulated for long-term performance in typical extreme termination environments. The housing comes on a pre-lubricated, crush resistant, holdout for simple installation. The superior elastomeric housing, together with the positively positioned stress control system and moisture sealing mastic, provide reliable and consistent installations.

Features

• Non-tracking, erosion resistant elastomeric body
• Outstanding UV stability
• Metal oxide matrix electrical stress control patch
• Crush resistant core (holdout)
• Simple, straight forward instructions
• Self amalgamating mastic sealing strips
• Compact design
• Range taking
• Designed and tested to IEEE 48-1996

Benefits

• Maintenance free, long life even in highly contaminated areas
• Material does not degrade in outdoor applications
• Provides excellent electrical performance and prevents misplacement of stress control system
• Prevents collapsing due to rough handling
• Quick and easy installation
• Seals out all moisture and contamination
• Provides easier installation in confined spaces
• Fewer kits to accommodate a wider range of cable sizes
• Terminations meet or exceed industry standard
